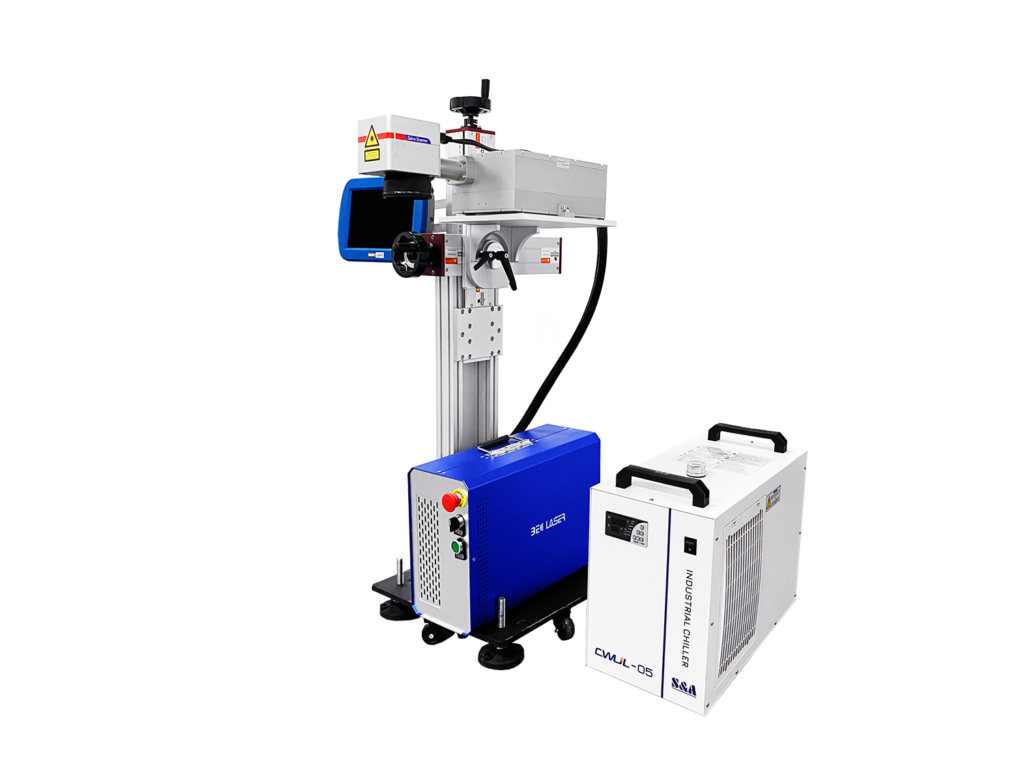

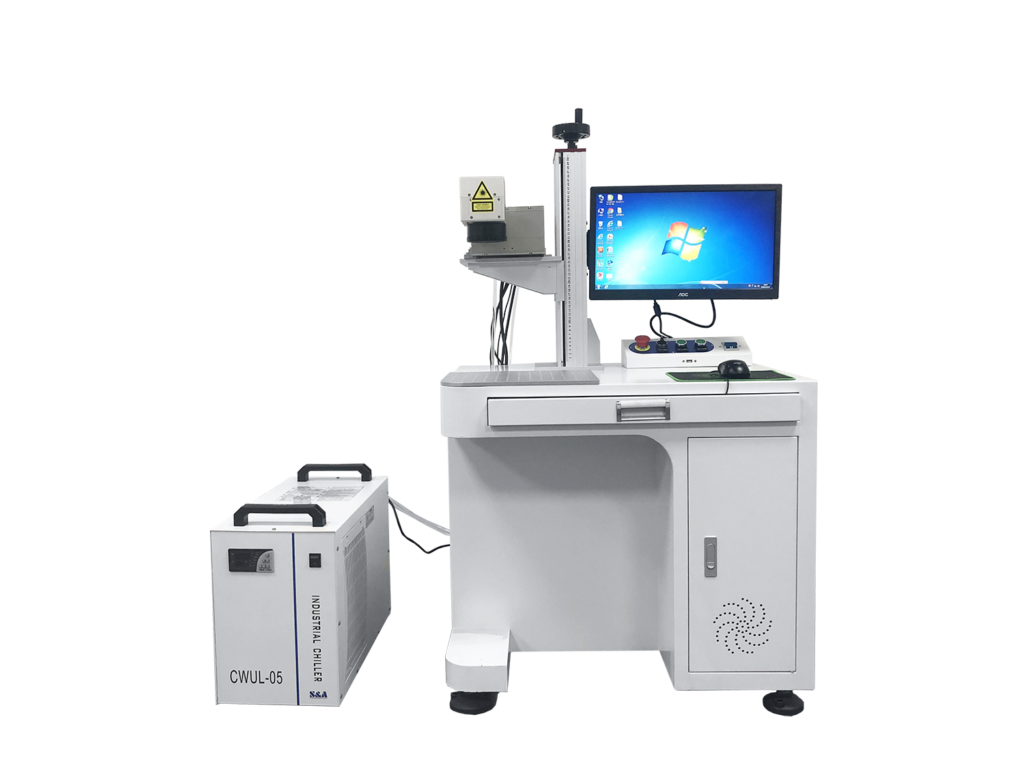

UV Laser Marker
UV laser marking offers high-precision, non-contact marking suitable for sensitive materials. It utilizes ultraviolet light to achieve fine detail and minimal heat damage, making it ideal for plastics, glass, and certain metals. This technology is favored for applications requiring intricate designs.
PERFORMANCE CHARACTERISTICS
1. Using high quality ultraviolet laser, the focus spot is small, the heat effect is small, the application scope is wider, the mark effect is clear and beautiful
2. The software has powerful functions, supports multiple languages, simple operation and stable performance
3. Automatic structure design, compact size, flexible installation, automatic work, save labor costs
4. The whole machine is air-cool, no consumables, no pollution, no maintenance, long service life, safe, stable and efficient.
APPLICATION AREA
UV laser printer is mainly based on its unique low-power laser beam, especially suitable for ultra-fine processing of the high-end market, cosmetics, drugs, food and other polymer material packaging bottle surface marking, fine effect, clear and firm marking, better than ink jet machine and no pollution; Marking and slicing of flexible PCB board; Silicon wafer microporous, blind hole processing; LCD glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, plastic keys, electronic components, gifts, communication equipment, building materials and so on.
Technical specifications
| Model | ZT-PUV3,ZT-PUV5,ZT-PUV10 |
| laser power | 3W/5W/10W |
| Wave length | 355nm |
| Min.charaacter size | ≤0.2mm |
| Min.linear width | ≤0.1mm |
| Marking speed | ≤7000mm/s |
| Cooling way | water cooling |
| Machine weight | 110KG |
| Power consumption | 800W |
| Marking scope | 110m*110mm(optional) |
| Machine dimension | 850mm*550mm*1500mm |
| Power requirements | 220V±10/50HZ/60HZ |
